Nipron Products HNSP9-520P-S20-H1V Nonstop Power Supply

80Plus Bronze Nonstop Power Supply(RS232C signal type)
	- Backup function protects PCs at blackout - 80PLUS BRONZE acquired - All outputs have the minimum load of 0A - Less than 1W standby power complying with ErP directive(Contribute to the reducing CO2 emissions and electricity costs) - Thermo-sensing speed control fan allows for a quiet environment
	Continuous 400W	Peak 520W


*Please use Metric Screw Threads, ("M3" screws) for PSU mounting.(Inch Screw Threads cannot be used.)

Function

:For description of function, click each icon

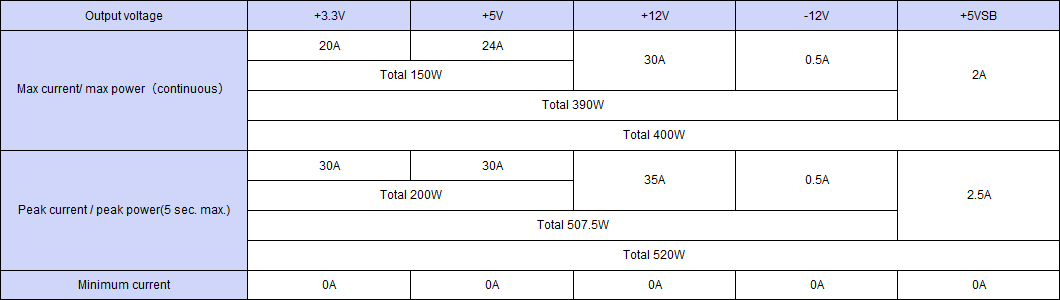

Output specification

Output connector

: For description of function, click each icon

Standard, specifications: For standard and specifications, click each item.

Compatible case size	PS2
Outline drawing	150Wx86Hx140D
Weight	1.80 kg typ
Input Voltage	AC	85-264V
	DC	24V(Dedicated battery package only)
Efficiency	AC	80% typical at AC 100V/85% typical at AC 200V
	DC	80% typ
Power factor	96% min. at AC 100V/90% min. at AC 200V
Input changeover system	Worldwide
AC, DC input
Safety	UL60950-1, CSA C22.2 No.60950-1,CCC S&E, CE Marking (LVD, EMC)
High frequency current regulation	IEC61000-3-2 (Ed. 2.1) Class D and EN61000-3-2(A14)Class D compliant
EMI standard (Input feedback noise)	VCCI-B FCC-B and EN55022-B compliant
CE marking	Low Voltage Directive, EMC Directive
EMS immunity	Electrostatic discharge: EN61000-4-2 compliant Radiated,radio frequency electromagnetic fields: EN61000-4-3 compliant Fast transient burst: EN61000-4-4 compliant Lightning surge: EN61000-4-5 compliant Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant Power source frequency magnetic immunity: EN61000-4-8 compliant Voltage dips/regulations: EN61000-4-11 compliant
MTBF	70,000H min
Operating temperature	0 to 60 deg C (load derating: 100% at 45 deg C, 70% at 60 deg C)
Leakage current	0.5mA max. at AC 100V, 1.0mA max. at AC 200V, 1.2mA max. at AC 240V
Cooling systems	Forced air cooling
Insulation
Output ground connection	Connected to chassis
Signal unit	SU-RS (RS232C), SU-BU (buzzer), SU-US2 (USB)
Warranty	Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.

Automatic shutdown compatible OS:Click here for more information and installation.

Compatible battery pack (Separately sold):When each icon is clicked, corresponding description is displayed.

BS10A-H24/2.0L	Ni-MH Battery Package
BS11A-P24/2.3L	24V Lead-Acid Battery Package
BS12A-P24/5.0L	24V Large Capacity (5AH) Lead-Acid Battery Package
RBS02A-P24/2.3L	Removable Battery Package

Accessory (Optional)

NSP Pro 2 CD Media	Shutdown software for Nonstop power supply
NSP Pro for 95/98	Shutdown Software for Nonstop Power Supply
NSP Pro for NT	Shutdown software for Nonstop Power Supply
WH-G0808-500	PCI Express 8(6+2)Pin connector output harness
WH-GG208-500	PCI Express 8(6+2)Pin & PCI Express 6Pin connector output harness
WH-M2022-500	20-Pin Mother Board Harness
WH-M2422-500	24P Harness for Motherboard
WH-PP610-850	Peripheral Connector Harness(Peripheral5 FDD1)
WH-PS610-850	Peripheral Connector HarnessPeripheral Connector Harness(Peripheral3 S-ATA2 FDD*1)
WH-PS710-850	Peripheral Connector Harness(Peripheral2 S-ATA4 FDD*1)
WH-S0310-500	Fan Signal Harness (3P)
WH-S0610-500	Blackout Signal Harness for Nonstop Power Supply
WH-S0610-500-01	FAN Signal Harness (6P)
WH-V0408-500	+12V Power Connector Harness (4P)
WH-V0808-500	+12V Power Connector Harness (8P)
WH-VG208-500	+12V Power Connector Harness With PCI Express Compatible Connector
WH-VG208-500-02	+12V(8-Pin)and PCI-E(6-Pin) connector harness
WH-VV208-500-02	+12V Power Connector Harness With 8Pin+8Pin
WH2601-02(PS2601-02)	RS232C Cable(Windows 2000 and later)
WH2884	Battery extension harness
