24V Lead-Acid Battery Package |
 |
Applicable power supplies - HNSP9-520 series - eNSP3-450 series - mNSP3-450 series Connector pinout is critical to identify in that case. 300W for 1.5 minutes can be backuped with only a 5 inch bay space For higher power and longer backup time required, BS12A-P24/5.0L Lead-aid battery or BS10A-H24/2.0L Ni-MH battery is recommended. |
 |
|
|

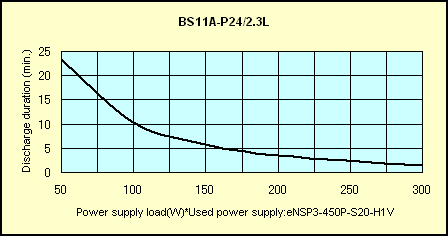

Battery Data
Standard, specifications: For standard and specifications, click each item.
Compatible case size |
5 inch bay removable type |
Outline drawing |
146Wx37Hx190D |
Weight |
2.60 kg typ |
Applied battery |
Sealed lead-acid battery (two 12V-batteries in series connection) |
Nominal battery power voltage |
24 V |
Rating capacity |
2.3 Ah |
Built in fuse rating |
30A 32V |
Operating temperature |
0 to 40 deg. C/20 to 90%RH |
Storage temperature/humidity |
-20 to 50 deg.C/10 to 95%RH |
Warranty |
One year after delivery; if defects belong to us, the defective unit shall be repaired or replaced at our cost. |
