| Compatible case size |
Other |
| Outline drawing |
41Wx128Hx230D |
| Weight |
1.40 kg typ |
| Input Voltage |
AC |
85-264V |
| Efficiency |
AC |
80% typical at AC 100V/83% typical at AC 200V |
| Power factor |
96% min. at AC 100V/90% min. at AC 200V |
| Input changeover system |
Worldwide |
| Safety |
IEC60950-1,CSA60950-1(c-UL) |
| High frequency current regulation |
IEC61000-3-2 (Ed. 2.1) Class D and EN61000-3-2 (A14) Class D compliant |
EMI standard
(Input feedback noise) |
VCCI-B FCC-B EN55022-B and CISPR22-B compliant |
| CE marking |
 |
| EMS immunity |
Electrostatic discharge: EN61000-4-2 compliant
Radiated, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst:�@EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity:�@EN61000-4-8 compliant
Voltage dips and fluctuation:�@EN61000-4-11 compliant |
| MTBF |
70,000H min. |
| Operating temperature |
-10 to 60 deg C (load derating: 100% at 40 deg C, 60% at 60 deg C) |
| Leakage current |
0.21mA max. at AC 100V/0.5mA max. at AC 240V |
| Cooling systems |
Forced air cooling |
| Insulation |
|
| Output ground connection |
Capacitor ground |
| Warranty |
Three years after delivery; the defective unit shall be repaired or replaced if defects belong to us. |

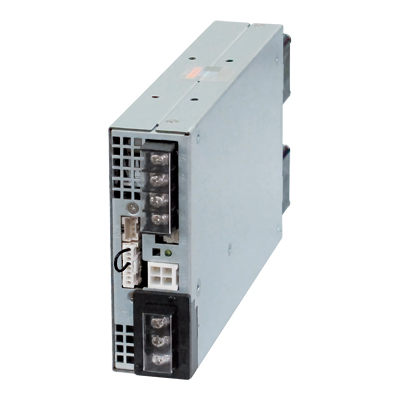

AC-DC Converter
