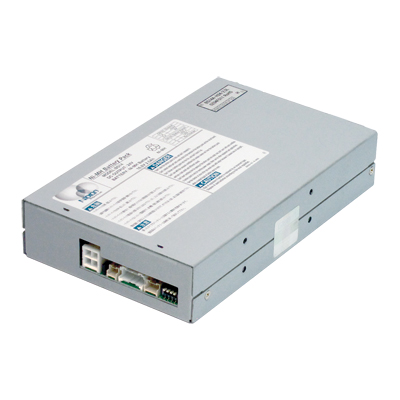

| 1U/3U size Ni-MH battery package |
 |
Ni-MH battery package for OZP/GPSA series with 24V output enabling battery backup operation
• Larger capacity with parallel connection
• Settable discharge stop time with DIP switch
• Capacity decrease prevention at low temperature with a heater equipped inside
• Applicable power supplies
- OZP-120-24-*B*
- OZP-170-24-*B*
- GPSA-360-24-TP
- GPSA-750-24-TP
• RoHS compliant |
 |
|
|

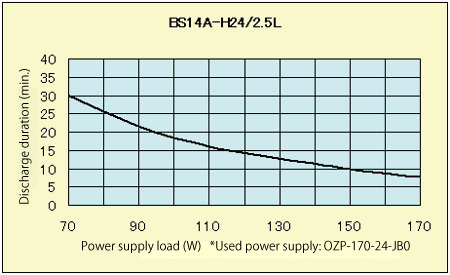

Battery Data
Standard, specifications: For standard and specifications, click each item.
| Compatible case size |
Other |
| Outline drawing |
128Wx41Hx211D |
| Weight |
1.90 kg typ |
| Applied battery |
Sealed nickel hydoride battery (1.2V x 14 in series connection) |
| Nominal battery power voltage |
16.8V |
| Rating capacity |
2500 mAh |
| Built in fuse rating |
30A 32V |
| Operating temperature |
0 to 50 deg.C/10 to 90% RH |
| Storage temperature/humidity |
One year max.: -20 to under 35 deg.C/10 to 95%<br>
Six months max.: -20 to under 45 deg.C/10 to 95%<br>
One month max.: -20 to 55 deg.C/10 to 95%<br>
One week max.: -20 to 65 deg.C/10 to 95% |
| Warranty |
One year after delivery; if defects belong to us, the defective unit shall be repaired or replaced at our cost except defects caused by over discharge. |
