GPS-1500-04
Stocked product Inquiry / Quotations
Most suitable power supply for gate drive of IPMs such as 3 Phase Inverters
 GPS-1500-04 • 4 outputs integrated in one unit for driving IPMs
• High insulation between Primary and Secondary circuit, and between secondary circuits
• Also available as as a pre-regulator for auxiliary power supply inside the equipment.
• High reliability design with no photo-couplers used
Continuous
3W
Peak

Output specification

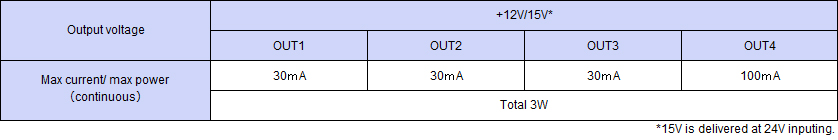

Output specification ,Continuous 3W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 51.5Wx18Hx33D
Weight 0.02 kg typ
Input Voltage DC 20V (18 to 22V)/24V (22 to 26V)
Efficiency DC 70% typical.
Power factor
Input changeover system
AC, DC input
Safety
High frequency current regulation
EMI standard
(Input feedback noise)
CE marking
EMS immunity
MTBF
Operating temperature -10 to 75 deg. C
Leakage current
Cooling systems Air-cooling without blower
Insulation
Output ground connection
Warranty Three years after delivery; if defects belong to us, the defective unit shall be repaired or replaced at cost.
