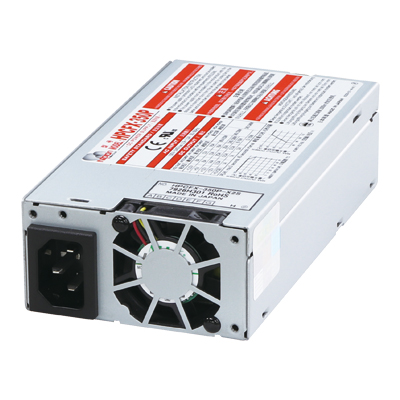

HPCFX-350P-X2B
1U/2U uncomplianceCompactPCI uncomplianceVMEbus uncomplianceERP uncomplianceRedundant uncomplianceOther complianceSSI-DPS uncompliance
NSP Stocked product Inquiry / Quotations
FlexATX size high efficiency Industrial Nonstop power supply
 HPCFX-350P-X2B Backup function protects PCs at blackout
Conducted emission of even a single power supply unit clears VCCI Class B.
Plug-in cables for re-configuring power cables (except for the main power cable).
Minimum load current 0A for all outputs specification.
Low noise design with a temperature controlled variable-speed fan.
Continuous
245W
Peak
346W
Click here for connection to battery pack
Click here for detailed features
Function :For description of function, click each icon
DC Startup uncomplianceRS232C uncomplianceTTL uncomplianceSilent complianceRoHS Directive complianceConnection compliancePFC complianceLead-free compliance5VSBFAN uncomplianceTSFCFAN uncomplianceUSB uncompliance

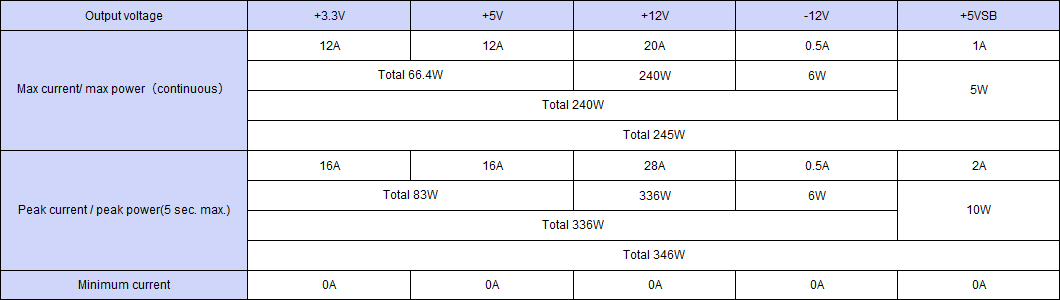

Output specification
Output specification ,Continuous 245W,Peak Capacity 346W
Output connector: For description of function, click each icon
Output connector for ATX Mother Board compliance ATX 12V ver. 2.0 or later power supply with SSI power connector complianceATX20+4Pin uncomplianceAT motherboard output connector uncomplianceATX Motherboard Auxiliary Connector uncomplianceProcessor connector for ATX motherboard complianceProcessor Connector for SSI Motherboard compliancePCI-Express compliancePCI-E 8Pin uncompliancePeripheral connector complianceConnector compliant with the S-ATA (Serial ATA) standard complianceConnectors for FDDs compliance
Standard, specifications: For standard and specifications, click each item.
Compatible case size FLEXATX
Outline drawing 81.5Wx41Hx150D
Weight 0.7 kg typ
Input Voltage AC 85-264V
DC
Efficiency AC 82% typ(AC100V)/87% typ(AC200V)
DC
Power factor 96% typ(AC100V)/90% typ(AC240V)
Input changeover system Worldwide
AC, DC input
Safety UL62368,CSA62368(c-UL),CE Marking
High frequency current regulation IEC61000-3-2 (ed.2.1) class D
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking Low Voltage Directive, EMC Directive,RoHS2.0
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant
MTBF
Operating temperature 0-60 deg.C
Leakage current
Cooling systems Forced air cooling
Insulation
Output ground connection
Signal unit
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Automatic shutdown compatible OS:Click here for more information and installation.
WindowsXP complianceWindows 7 complianceWindows 10 complianceOperating on Linux compliance
Compatible battery pack (Separately sold):When each icon is clicked, corresponding description is displayed.
Lead uncomplianceNickel Metal Hydride compliance Lithium Ion uncomplianceCapacitor uncompliance
BS28A-H350/2.5L Status outputs (remaining capacity/battery life notification)
available for the battery package
Accessory (Optional)
WH-PP610-850 Peripheral Connector Harness(Peripheral*5 FDD*1)
WH-PS610-850 Peripheral Connector HarnessPeripheral Connector Harness(Peripheral*3 S-ATA*2 FDD*1)
WH-PS710-850 Peripheral Connector Harness(Peripheral*2 S-ATA*4 FDD*1)
WH-PS810-1000 Peripheral Connector Harness(S-ATA*7,Peripheral*1)
WH-S0304-500 Signal harness for HPCFX-350P series
WH-V0404-500 Output harness(12V 4pin)
WH-V0804-500 Output harness(12V 8pin)
