High-Efficiency FlexATX Industrial PC Power Supply

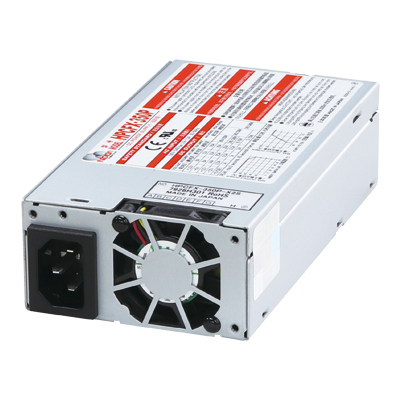

HPCFX-350P-X2S - Designed for Industrial PCs requiring a compact FlexATX power supply with high efficiency and reliable operation.
- Approximately 1.4x higher output capacity than Nipron's conventional PCFX-220P-X2S while maintaining the same FlexATX form factor.
- Up to 88% typical efficiency for reduced power consumption and lower operating temperatures.
- Conducted EMI complies with VCCI Class B using a single power supply unit.
- Standby power consumption of 0.5W or less, compliant with the ErP Directive.
- Plug-in output cables (excluding the main power connector) for flexible system integration.
- 0A minimum load on all output rails.
- Low-noise cooling with a temperature-controlled variable-speed fan.
Continuous
245W
 Peak
346W
Click here for detailed features
*Please use Metric Screw Threads, ("M3" screws) for PSU mounting.(Inch Screw Threads cannot be used.)
Function :For description of function, click each icon
DC Startup uncomplianceRS232C uncomplianceTTL uncomplianceSilent complianceRoHS Directive complianceConnection compliancePFC complianceLead-free compliance5VSBFAN uncomplianceTSFCFAN uncomplianceUSB uncompliance
Output specification

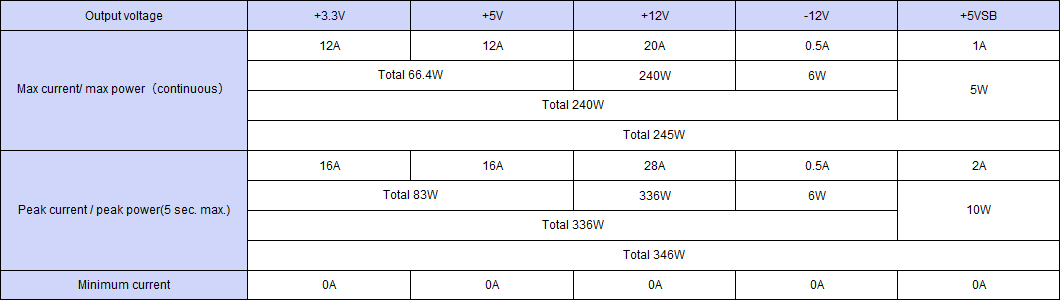

Output specification ,Continuous 245W,Peak Capacity 346W
Output connector: For description of function, click each icon
Output connector for ATX Mother Board uncompliance ATX 12V ver. 2.0 or later power supply with SSI power connector uncomplianceATX20+4Pin complianceAT motherboard output connector uncomplianceATX Motherboard Auxiliary Connector complianceProcessor connector for ATX motherboard complianceProcessor Connector for SSI Motherboard compliancePCI-Express compliancePCI-E 8Pin uncompliancePeripheral connector complianceConnector compliant with the S-ATA (Serial ATA) standard complianceConnectors for FDDs compliance
Standard, specifications: For standard and specifications, click each item.
Compatible case size FLEXATX
Outline drawing 81.5Wx41Hx150D
Weight 0.7 kg typ
Input Voltage AC 85-264V
Efficiency AC 82% typ(AC100V)/87% typ(AC200V)
Power factor 96% typ(AC100V)/90% typ(AC240V)
Input changeover system Worldwide
Safety UL62368,CSA62368(c-UL),CE Marking
High frequency current regulation IEC61000-3-2 (ed.2.1) class D
EMI standard
(Input feedback noise)		 VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking Low Voltage Directive, EMC Directive,RoHS2.0
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant
MTBF
Operating temperature 0-60 deg.C
Leakage current 1mAMax(AC100V)/2mAMAX(AC240V)
Cooling systems Forced air cooling
Insulation
Output ground connection
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Accessory (Optional)
WH-PP610-850 Peripheral Connector Harness(Peripheral*5 FDD*1)
WH-PS610-850 Peripheral Connector HarnessPeripheral Connector Harness(Peripheral*3 S-ATA*2 FDD*1)
WH-PS710-850 Peripheral Connector Harness(Peripheral*2 S-ATA*4 FDD*1)
WH-PS810-1000 Peripheral Connector Harness(S-ATA*7,Peripheral*1)
WH-S0304-500 Signal harness for HPCFX-350P series
WH-V0404-500 Output harness(12V 4pin)
WH-V0804-500 Output harness(12V 8pin)
Download Product and Technical Information
Instruction Manual Test data Product catalogue product specification
