| 3U/4U size large capacity battery package |
 |
Battery package for GNSP series
• Two power supplies are connectable at a time to one battery package
• Applicable power supply: GNSP series
• RoHS compliant |
 |
Actual appearance may be different. |
|

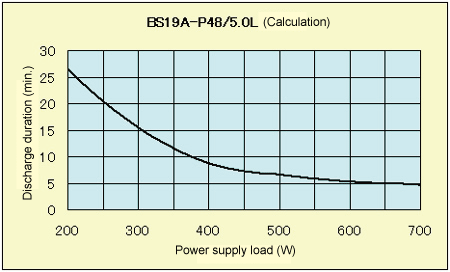

Battery Data
Standard, specifications: For standard and specifications, click each item.
| Compatible case size |
Other |
| Outline drawing |
164Wx128Hx235D |
| Weight |
10.00 kg typ |
| Applied battery |
Sealed Lead-acid battery: 12V x 4 in series connection |
| Nominal battery power voltage |
48V |
| Rating capacity |
5.0Ah |
| Built in fuse rating |
30A 60V |
| Operating temperature |
0 to 40 deg. C/20 to 90 % |
| Storage temperature/humidity |
-20 to 40 deg.C/10 to 95% |
| Warranty |
One year after delivery; if defects belong to us, the defective unit shall be repaired or replaced at our cost except defects caused by over discharge. |
