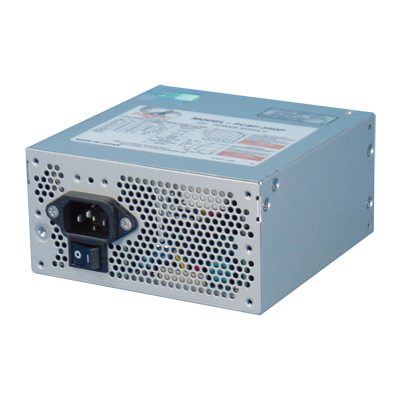

| +12V Dual Outputs! Ultra high efficiency SFX Power Supply |
 |
- SFX power supply APPENDIX C mounting side compliant
- +12V dual outputs for stable CPU operation
- 0A (zero amp) of min. load for each output, and still stable operation
- Flexible selection of output harnesses due to connector type
|
|
Continuous
250W |
|
Peak
350W |
|
 |
| *Output harnesses are optional. |
| *Please use Metric Screw Threads, ("M3" screws) for PSU mounting.(Inch Screw Threads cannot be used.) |

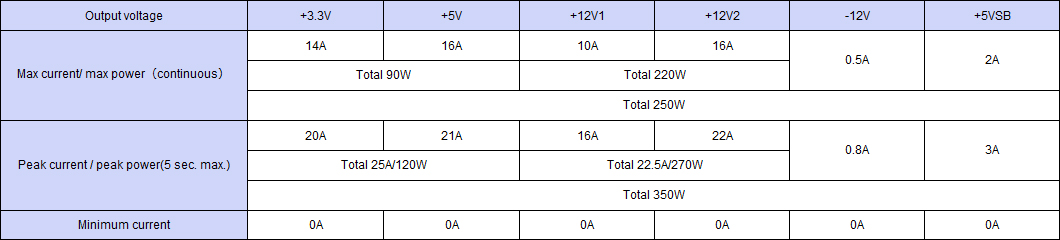

Function :For description of function, click each iconOutput specification
Output connector : For description of function, click each iconStandard, specifications: For standard and specifications, click each item.
| Compatible case size |
SFX |
| Outline drawing |
125Wx63.5Hx125D |
| Weight |
1.20 kg typ |
| Input Voltage |
AC |
85-264V |
| Efficiency |
AC |
73% typical at AC 100V/77% typical at AC 240V |
| Power factor |
96% typical at AC 100V/90% typical at AC 240V |
| Input changeover system |
Worldwide |
| Safety |
UL60950, CSA C22.2 No.950(c-UL), EN60950-1(NEMKO), CE Marking |
| High frequency current regulation |
IEC61000-3-2 Class D compliant |
EMI standard
(Input feedback noise) |
VCCI FCC and CISPR 22 Class A compliant |
| CE marking |
Low voltage directive |
| EMS immunity |
EN61000-4-2,
EN61000-4-3,
EN61000-4-4,
EN61000-4-5,
EN61000-4-6,
EN61000-4-8,
EN61000-4-11 |
| MTBF |
70,000H |
| Operating temperature |
0 to 40 deg C (100% load), to 60 deg C (60% load). |
| Leakage current |
0.5mA max. at AC 100V)/1.2mA max. at AC 240V |
| Cooling systems |
Forced air cooling |
| Insulation |
 |
| Output ground connection |
|
| Warranty |
Three years after delivery, however, if defects belong to us, the defective unit shall be repaired or replaced at our cost. |
