| Compatible case size |
Other |
| Outline drawing |
55Wx28Hx133D |
| Weight |
0.16 kg typ |
| Input Voltage |
AC |
85-264V |
| Efficiency |
AC |
86% typ(100VAC)/88% typ(200VAC) |
| Power factor |
 |
| Input changeover system |
Worldwide |
| Safety |
IEC/EN60601-1 Ed3.1(CB/CE Marking), ANSI AAMI ES60601-1 Ed3.1(UL),
CSA60601-1 Ed3.1(cUL), IEC/EN62368-1 2nd(CB/CE Marking),
UL/CSA62368-1 2nd(UL/cUL),GB4943.1(CCC), PSE (ordinance clause 2) compliant |
| High frequency current regulation |
|
EMI standard
(Input feedback noise) |
VCCI/FCC/CISPR 32/EN55032 class B compliant |
| CE marking |
Low Voltage Directive, EMC Directive,RoHS2.0 |
| EMS immunity |
Electrostatic discharge: IEC61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: IEC61000-4-3 compliant
Fast transient burst: IEC61000-4-4 compliant
Lightning surge: IEC61000-4-5 compliant
Conductive radio frequency electromagnetic fields: IEC61000-4-6 compliant
Power source frequency magnetic immunity: IEC61000-4-8 compliant
Voltage dips and fluctuation: IEC61000-4-11 compliant |
| MTBF |
400,000h |
| Operating temperature |
-10 to 70 deg.C |
| Leakage current |
0.2mA max. (100VAC), 0.5mA max. (264VAC) |
| Cooling systems |
Air-cooling without blower |
| Insulation |
4kV AC/1minute between input and output (2MOPP),2kV AC/1minnute between input and FG,0.5kV AC/1minute between each output and FG |
| Output ground connection |
Capacitor grounding |
| Warranty |
Three years after delivery: If any defects belong to us, the defective unit shall be repaired or
replaced at our cost. |

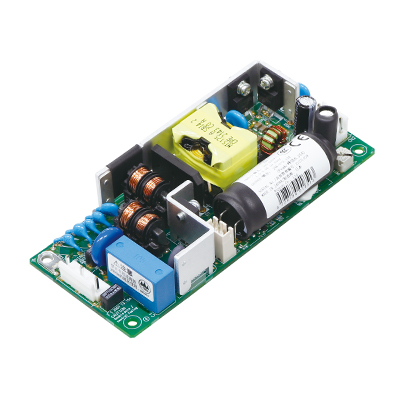

AC-DC Converter
