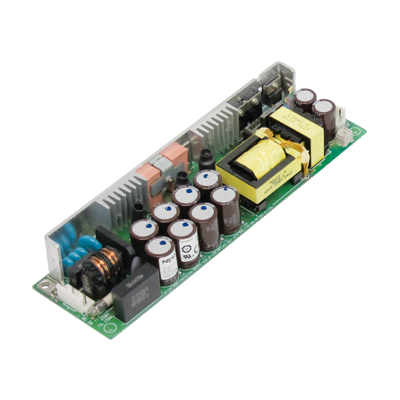

OZ-060-3R3-J00
Stocked product Inquiry / Quotations
Compact 60W General-purpose (3.3V output nylon connector type)
 OZ-060-3R3-J00 • Double-sided PWBs with through-holes suitable for industrial use(Other companies typically use single-sided PWBs.)
• Equipped with a variable resistor to adjust output voltage
• UL60950, CSA60950 acquired
• High efficiency with synchronous rectifying system
-Approved for various safety standards(UL60950, CSA60950, EN60950)
-Synchronous rectifying system for high efficiency
Continuous
40W
Peak

Output specification
Output specification ,Continuous 40W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 55Wx32Hx195D
Weight 0.30 kg typ
Input Voltage AC 85-264V
Efficiency AC 74% typical at AC 100V/75% typical at AC 240V
Power factor
Input changeover system Worldwide
Safety Certified UL60950-1,CSA60950-1(c-UL),CE marking(IEC62368-1),
The Electrical Appliance and Material Safety Law (section 2) compliant
High frequency current regulation
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B and EN55022-B compliant
CE marking Low voltage and EMI directive and RoHS2.0
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiated, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant
MTBF 200,000H
Operating temperature 0 to 60 deg C.
Leakage current 0.5mA max. at AC 100V/1mA max. at AC 240V
Cooling systems Air-cooling without blower
Insulation AC1500V/min between AC input and FG/DC output 50 ohm min between AC input and DC output/FG and between DC output and FG
Output ground connection Capacitor ground
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Accessory (Optional)
WH-C04VH-800 Output harness for OZ-030/060/FZP-040 series
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
