| Compatible case size |
Other |
| Outline drawing |
62Wx38Hx155D |
| Weight |
0.26 kg typ |
| Input Voltage |
AC |
85-264V |
| Efficiency |
AC |
92.0% typ(AC100V)/94.0% typ(AC200V) |
| Power factor |
99% typ(AC100V)/90% typ(AC200V) |
| Input changeover system |
Worldwide |
| Safety |
UL60601-1,CSA C22.2 No601.1,ANSI/AAMI ES60601-1,UL60950-1,CSA60950-1,
CE marking,DENAN(section2) compliant. |
| High frequency current regulation |
IEC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant |
EMI standard
(Input feedback noise) |
VCCI-B FCC-B CISPR22-B EN55022-B compliant |
| CE marking |
Low Voltage Directive, EMC Directive,RoHS2.0 |
| EMS immunity |
Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant |
| MTBF |
 |
| Operating temperature |
-10 to 60 deg C (With natural cooling)/-10 to 70 deg C (With forced air cooling) |
| Leakage current |
0.06mA typ(AC100V)/0.12mA typ(AC200V) |
| Cooling systems |
Air-cooling without blower |
| Insulation |
|
| Output ground connection |
Capacitor ground |
| Warranty |
Three years after delivery |

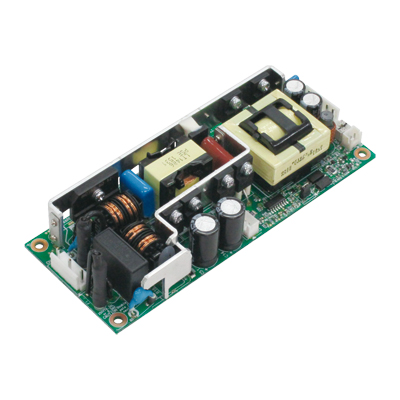

AC-DC Converter
