mOZP-350-12-JSE
Stocked product Inquiry / Quotations
Medical Standard IEC60601 2nd&3rd (ANSI/AAMI ES60601-1) Approved
High Efficiency, High Peak Power, and Low Standby Power Compliant AD-DC Switching-Mode Power Supply (+12V output Nylon connector type)
 mOZP-350-12-JSE -Continuous 300W/430W, peak 500W high power.
-With ultra high efficiency and low losses, reduce CO2 emission and save energy.
-Achieving the low power consumption at standby mode (at remote OFF).
-With current balancing circuit, easily parallel-operatable.
-Output voltage adjusting volume available.
-Output ON/OFF control function.
-Output voltage remote sensing function.
-Noise reduction circuit.
-Low noise & Low leakage current, without external noise filter.
-Double-sided PCB with through-hole.
Continuous
300W
Peak
504W
Output specification

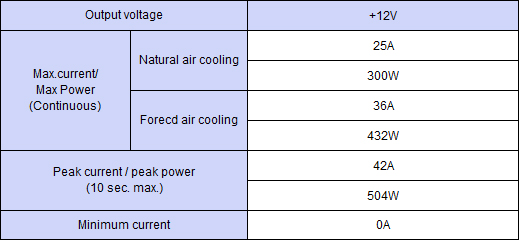

Output specification ,Continuous 300W,Peak Capacity 504W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 95Wx44Hx222D
Weight 0.65 kg typ
Input Voltage AC 85-264V
Efficiency AC 90% typ (AC100V)/92% typ (AC200V)
Power factor 99% typ(AC100V)/94% typ(AC200V)
Input changeover system Worldwide
Safety UL 60601-1,CSA-C22.2 No. 601.1,ANSI/AAMI ES60601-1
UL60950-1,CSA60950-1(c-UL),CE marking(IEC62368-1)
High frequency current regulation IEC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking Low voltage and EMI directive and RoHS2.0
EMS immunity Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant
MTBF
Operating temperature -10 to 60 deg C (With natural cooling)/-10 to 70 deg C (With forced air cooling)
Leakage current 0.09mA at Rated Load, 0.19mA at Load ratio Max 5%(AC100V)
0.17mA at Rated Load, 0.23mA at Load Ratio Max 5% (AC200V)
Cooling systems Air-cooling without blower
Insulation
Output ground connection Capacitor ground
Warranty Three years after delivery; the defective unit shall be repaired or replaced at our cost if defects belong to us.
Compatible battery pack (Separately sold):When each icon is clicked, corresponding description is displayed.
Lead uncomplianceNickel Metal Hydride uncompliance Lithium Ion uncomplianceCapacitor compliance
BS13A-EC400/422F Capacitor package
Accessory (Optional)
WH-02PH02PH-200 Signal harness for parallel operation
WH-02XH02XH-500 RC Signal Harness
WH-03ELP03XH-200 Power harness for connecting
the capacitor package
WH-05XH05XH-500 Signal Harness
WH-C05VH-800 Input Harness
WH-C05VH-800-01 Input Harness (Ferrite Core equipped)
WH-C06VH-500 Output Harness(+)
WH-C07VH-500 Output Harness(-)
