Medical ATX Power Supply Compliant with IEC60601-1

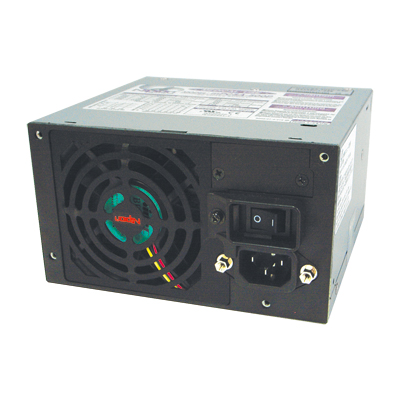

mPCSA-500P-X2S Designed for medical equipment requiring IEC60601-1 compliance, this ATX power supply features reinforced and double insulation to eliminate the need for an additional medical-grade isolation transformer.

- Reinforced and double insulation design compliant with medical safety requirements
- Dual L/N line fuses for enhanced protection
- Low leakage current: less than 0.3mA at 264VAC input
Continuous
301W
 Peak
500.5W
*Output Harnesses are optional.
*Please use Metric Screw Threads, ("M3" screws) for PSU mounting.(Inch Screw Threads cannot be used.)
Function :For description of function, click each icon
DC Startup uncomplianceRS232C uncomplianceTTL uncomplianceSilent complianceRoHS Directive complianceConnection compliancePFC complianceLead-free compliance5VSBFAN uncomplianceTSFCFAN complianceUSB uncompliance
Output specification

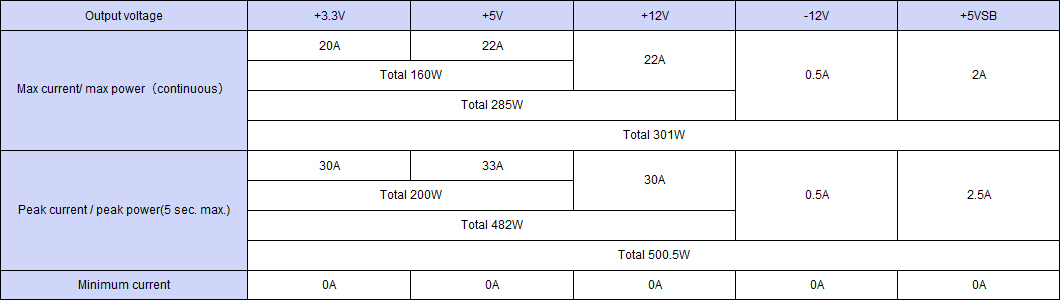

Output specification ,Continuous 301W,Peak Capacity 500.5W
Output connector: For description of function, click each icon
Output connector for ATX Mother Board compliance ATX 12V ver. 2.0 or later power supply with SSI power connector complianceATX20+4Pin uncomplianceAT motherboard output connector uncomplianceATX Motherboard Auxiliary Connector uncomplianceProcessor connector for ATX motherboard complianceProcessor Connector for SSI Motherboard compliancePCI-Express compliancePCI-E 8Pin uncompliancePeripheral connector complianceConnector compliant with the S-ATA (Serial ATA) standard complianceConnectors for FDDs compliance
Standard, specifications: For standard and specifications, click each item.
Compatible case size PS2
Outline drawing 150Wx86Hx139D
Weight 1.80 kg typ
Input Voltage AC 85-264V
Efficiency AC 73% typ(AC100V)/77% typ(AC240V)
Power factor 99% typ(AC100V)/97% typ(AC240V)
Input changeover system Worldwide
Safety UL60601-1, CSA60601-1(c-UL), IEC60601-1, UL60950-1, CSA60950-1(c-UL), CCC,
CE marking(IEC62368-1)
High frequency current regulation IEC61000-3-2 (Ed. 2.1) class D EN61000-3-2 (A14)class D
EMI standard
(Input feedback noise)		 Input feedback noise VCCI class B FCC standard class B EN55022 class B
CE marking Low voltage and EMI directive and RoHS2.0
EMS immunity Electrostatic discharge to meet EN61000-4-2.
Radioactive radio-frequency electromagnetic fields to meet EN61000-4-3
Fast transient burst to meet EN61000-4-4
Lightning surge immunity to meeet EN61000-4-5
Immunity to conducted disturbances, Conductive radio-frequency electromagnetic field to meet EN61000-4-6
Power frequency magnetic field immunity to meet EN61000-4-8
Voltage dips and fluctuation to meet EN61000-4-11
MTBF
Operating temperature 0 to 60 degrees C (Derating operation needed at 45 to 60 degrees C)
Leakage current 0.12mA max(AC100V)/0.3mA max(AC264V)
Cooling systems Forced air cooling
Insulation
Output ground connection
Warranty Three years after delivery. However, if defects belong us, the defective unit shall be repaired or replaced at our cost.
Accessory (Optional)
ACC2734(PS2734) Clamp to prevent AC power cable coming off
WH-M2024-500 20-Pin Mother Board Harness
WH-M2424-500 24-Pin Harness for Motherboard
WH-PP610-850 Peripheral Connector Harness(Peripheral*5 FDD*1)
WH-PS610-850 Peripheral Connector HarnessPeripheral Connector Harness(Peripheral*3 S-ATA*2 FDD*1)
WH-PS710-850 Peripheral Connector Harness(Peripheral*2 S-ATA*4 FDD*1)
WH-V0408-500 +12V Power Connector Harness (4P)
WH-V0808-500 +12V Power Connector Harness (8P)
WH-VG208-500 +12V Power Connector Harness With PCI Express Compatible Connector
WH2753(PS2753) AC Power Cable(PSE)
