OZP-120-12/15-T00-C
Stocked product Inquiry / Quotations
Single output power supply with +12V/+15V selectable voltage (Block terminal type with chassis)
 OZP-120-12/15-T00-C - Double-sided PWBs with through holes suitable for industrial use (Other companies typically use single-sided PWBs.)
- Equipped with a variable resistor to adjust output voltage
- UL60950, CSA60950 approved
- Output capacity increased, 10% larger than competitor's even with same volume
- Corresponds to 1.8 times larger peak load than rated output
Continuous
120W
Peak
180W
Output specification

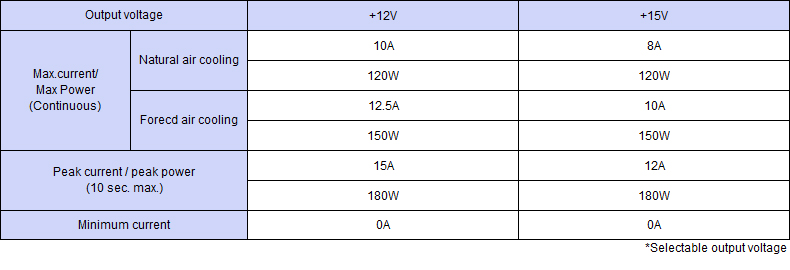

Output specification ,Continuous 120W,Peak Capacity 180W
Standard, specifications: For standard and specifications, click each item.
Compatible case size Other
Outline drawing 83Wx43Hx210D
Weight 0.60 kg typ
Input Voltage AC 85-264V
Efficiency AC 81% typ at 12V, 82% typ at 15V (AC100V)/84% typ at 12V, 85% typ at 15V (AC200V)
Power factor 99% typ (AC100V)/90% typ (AC200V)
Input changeover system Worldwide
Safety UL60950-1, CSA60950-1
High frequency current regulation IEC61000-3-2 (ed.2.1) class D EN61000-3-2 (A14) class D compliant
EMI standard
(Input feedback noise)
VCCI-B FCC-B CISPR22-B EN55022-B compliant
CE marking
EMS immunity "Electrostatic discharge: EN61000-4-2 compliant
Radiate, radio frequency electromagnetic fields: EN61000-4-3 compliant
Fast transient burst: EN61000-4-4 compliant
Lightning surge: EN61000-4-5 compliant
Conductive radio frequency electromagnetic fields: EN61000-4-6 compliant
Power source frequency magnetic immunity: EN61000-4-8 compliant
Voltage dips and fluctuation: EN61000-4-11 compliant"
MTBF 268,000H
Operating temperature -10 to 60 deg C, -10 to 70 deg C with forced air cooling
Leakage current 0.25mA max (AC100V), 2.5mA max (AC200V)
Cooling systems Air-cooling without blower
Insulation AC3000V/min between AC input and DC output/RC/AC_FAIL/BATT_LOW/FG AC2000V/min between AC input and FG 50 ohm min between DC output/RC/AC_FAIL/BATT_LOW/FG
Output ground connection Capacitor ground
Warranty Three years after delivery
Accessory (Optional)
WH-02XH02XH-500 RC Signal Harness
WH-05XH05XH-500 Signal Harness
